Daily Reports
Contents
Mon 03/06
Left Grenoble by car in the morning. Andrea, Alain, Alessandro. Reached the telescope at 20h30.
Tue 04/06
During the maintenance craned up again NIKA, installed. Warm impedance test: 20mbar/min at 3 bar
Start cooling down at 13h30.
Test with VNA at 300K:
Figures: VNA scans at 300K (0-8GHz). Left: 1mm array; right: 2mm array. Vertical scale 20dB/div.
Installed the electronics with the cables.
Figures: NIKA installed again.
We have also visited the back of the antenna and in particular the receivers cabin roof for possible installation of the NIKA-2 electronics. Space available is 80cm (H) x 200cm (Width) x 100cm (Depth). In order to have enough space to work, we will use a maximum depth of 60cm. The total COAX cables length if this solution is chosen is 6-8m.
Figures: Cabin top, possible place for NIKA-2 electronics.
- Cryostat temperatures at 18h (T0 + 4h30). 4K: 255K (14K/h slope); Still: 235K (25K/h slope); R_BM: 1011 Ohm.
The 4K is slower compared to the last Grenoble runs. We have checked the PT compressor pressures and they're OK: high=28.5bar; low=10bar. So we haven't lost helium. At 18h20 we reduce a bit the preref flux (from 1000mbar to 900mbar) to see if the 4K was affected (it shouldn't in principle). Actually YES, the 4K accelerated and the still slowed down a bit.
- Cryostat temperatures at 20h30 (T0 + 7h). 4K: 207K (20K/h slope); Still: 165K (27K/h slope); R_BM: 1020 Ohm.
- Cryostat temperatures at 22h30 (T0 + 9h). 4K: 164K (20K/h slope); Still: 115K (22K/h slope); R_BM: 1026 Ohm.
Wed 05/06
Cooling a bit slower than last time in Grenoble but still comparable. Hopes for condensation start in the morning. Pressures in the PT compressor: 27bar (high); 10bar (low).
- Cryostat temperatures at 9h30 (T0 + 20h). 4K: 6.5K (0.4K/h slope); Still: 9.2K (4K/h slope); R_BM: 1190 Ohm (10.3K).
- Cryostat temperatures at 10h30 (T0 + 21h). 4K: 5.7K; Still: 7.1K; R_BM: 1220 Ohm (8.9K).
- 11h (T0+21.5h) START CONDENSATION.
- 12h15. Condensation started OK, mixing chamber cooling fast, Switching ON the cold amplifiers to check arrays connections. Waiting for the superconducting T.
- 12h45. Both arrays seem CONNECTED. The Tc is between 1.35 and 1.5K (but mixing chamber thermometer calibration is not perfect) and as expected the transition is seen on the 2mm array first.
- 16h30. RESONANCES !!! 198 at 1mm, 129 at 2mm. Cryostat reached 120mK at least but oscillating and now heating up around 200mK again. Noise (very preliminary) seems OK on both arrays: 1Hz/sqrt(Hz) on the 2mm, 3Hz/sqrt(Hz) on, the 1mm. Ongoing..
18h00. The first test we made is to turn the antenna by 180deg in AZ (EL was roughly 45deg) to check if the resonances are stable with B fields or not. They seem stable enough, but very small (around 20Hz only) jumps are in any case seen on some pixels of the 2mm array during the slew.
Figures: Small jumps on one pixel (2mm array) during 180deg slew in AZ. The drift in the time trace is due to temperature drift of the mixing chamber during the test.
Nicolas, working remotely from Grenoble, analyzed the timelines during the slew and found 3-4 detectors exhibiting larger jumps (see next figure), of about 1kHz.
Figure: Bigger jumps on a particular pixel (1mm array, numdet=78) during 180deg slew in AZ (NP).
Thu 06/06
1h00. Added roughly 30mbar of 3He in the reserve.
08h30. The cryostat spent in any case the night oscillating.
Figure: Mixing chamber of the cryostat oscillating.
The heater on the mixing chamber, allowing to regulate the temperature, is broken inside the cryostat ! So no regulation possible unfortunately. That's a bit annoying since we are also quite warm with the cryostat in this shape.
The white noise on the arrays seems good, but there are lines at 0.96Hz (both arrays), 1.9Hz (1mm) and higher (mostly 1mm array).
- Y9_10h11 (2mA chauffage, oscillations 204-216mK periode 150s, J4=980mbar)
- Y9_10h38 (2.3mA chauffage, oscillations 208-215mK periode 150s, J4=1020mbar)
- Y9_10h58 (2.6mA chauffage, oscillations 0.1-1mK periode 150s, J4=1530mbar)
In this last conditions it seems more or less stable, but at 220mK. J4 is not too high. The detectors are working (the 1mm a bit limited), so we decide to leave it alone.
- Parameter files: run6_window.txt AND run_6_300K.txt (on archeops9 and archeops10). The 2mm array has been adjusted, the 1mm not yet.
On the 2mm array, from window closed to 300K (window open, looking at the cabin), the frequency shift is 100kHz. In Grenoble this array exhibited a shift of about 180kHz between 80K and 300K, equivalent to 0.8kHz/K. So, it seems that the windows is only equivalent to 300-100/0.8=175K. LN2 in front of the window determines a shift of 60kHz on the 2mm array (means the LN2 is colder than the window by 60KHz on average). Assuming the Grenoble calibration of 0.8KHz/K it means a Delta_T of 75K. So from this we would conclude that the window is 77+75=152K. Not too far from the 175K estimated starting from the 300K. SO THE WINDOW IS EQUIVALENT TO 160+/-10K !!!
On the 1mm array, from window closed to 300K (window open, looking at the cabin), the frequency shift is 150kHz. Remember we have one additional filter 9cm-1 this time. This might reduce a bit the sensitivity. LN2 in front of the window determines a shift of 110kHz on the 1mm array
SL 12/06: This must be something else than just the HDPE lens/window; indeed transmission = t = exp(-z * 2 pi n td nu / c), where z = 79 mm on the vertex (lest take 80 mm everywhere to over-estimate the effect, pi=3.1415, n = 1.525 for HDPE at 300K, td = 3.9*10-4 for HDPE at 300K, nu = 260 GHz (this value over-estimate a bit the effect for the 1mm band and over-estimate greatly the effect for the 2mm band), c = 3*108 m/s => t = 77% => TRJ = (1-t)*300K = 70K
After clarification with AM: "from window closed" means with the metallic window shutter, which must pickup some 300K in the interstice between itself and the HDPE lens/window
..... Mon-Tue 10-11/06 'TO DO LIST' FOR MARTINO (sorry, in italian)
- Scan VNA sulle matrici (finestra chiusa e finestra aperta) con il PC del VNA.
- Verificare i params e, soprattutto per la 1mm, aggiustare i livelli di potenza. Sulla 2mm dovrebbero essere già giusti più o meno, ma per favore ricontrolla se hai tempo. I params, che trovi su archeops9 (nella directory .../Data/param), si chiamano "run6_window.txt" e "run6_300K.txt". Per la 1mm i livelli sono tutti da fare.
- allineamento (con Santiago e Nello martedi' mattina). Attenzione, i piedini regolabili sono molto più alti dell'ultima volta. La tavola anti-vibrazione è già in funzione. Al piano dove c'e' l'elettronica di GISMO abbiamo trovato una tavola inutilzzata con 4 piedini di quel tipo. Se per caso uno dei nostri si dovesse rompere, chiedete di smontarne uno di quelli.
- PRENDERE TEMPO (tutto il tempo che serve !) PRIMA DI OSSERVARE SORGENTI ETC. PER RIFARE UN BUON PARAM SUL CIELO. Da fare martedi' alla first light. Quindi dite che avete bisogno di 1-2 ore per fare quello prima di mettersi a fare OTF_geometry etc.
- controllare sempre il criostato. J4 non deve esplodere (diciamo rimanere stabile attorno a 1.5bar o un po' più, ma non andare verso i 3 bar. Il tutto è in equilibrio instabile
- ho l'impressione che non si debbano schtchare i cavi semirigidi sulle barre del criostato. Ho messo degli "attenuatori di vibrazione" al posto. Mi sembra che questo riduca le righe di rumore almeno sulla 2mm. Ma magari è un mito.
- tutte le nostre cose, da riportare a Grenoble, sono al piano appena sotto la cabina e in un angolo al piano del compressore. Un po' oltre la "trap", contro il muro sulla destra.
- .... altre cose che vi verranno in mente.
Fri 07/06
10h30 Alain and Alessandro left the telescope.
11h00 Add parameter file: run6_77K.txt (on archeops9) levels adjusted on 1mm and 2mm channels
After an instability of the cryostat during the last night, temperature fluctuations of the Still are increasing. This can be observed on the pirani gauge (see figure-07/06-1). The impact on data is still not dramatic as shown in figures-07/06-2 (hoping don't get worse).
Figure-07/06-1: Pirani gauge
Figure-07/06-2: Impact of 100mk plate temperature fluctuations on 1mm and 2mm channel.
Sat 08/06
Fluctuations of the plate temperature are smaller then yesterday. The first component of about 1mk peak to peak has a period of about 1.5 hours (Fig08/06-1 left). The second component of about 0.1mK has a period of 1.4min (Fig08/06-1 right). Both of these plate fluctuations have a very small impact on data and they should not add any additional noise on scientific data. (see figure 08/06-2). The white noise on pixels is presented in figure 08/06-3. The lines are still present
Figure-08/06-1: The two components of the mixer chamber temperature fluctuations.
Figure-08/06-2: RFdIdQ (about 80min) for 1mm and 2mm channels
Figure-08/06-3: Noise spectrum for 1mm and 2mm
19h56 : Opacity 1.5!!! Be of good auspice for the next week.....
Sun 09/06
Fluctuations of the plate temperature are getting worse. The mixing chamber temperature has a fluctuation of 1.5mK with a period of about 1.5min (see Fig09/06-1). This has as impact on the signal as shown in Fig09/06-2. The plan is to recycle the cryostat on Monday morning. This should (hopefully) stabilize the working temperature for the whole campaign.
Figure-09/06-1: The mixer chamber temperature fluctuations.
Figure-09/06-2: RFdIdQ for 1mm and 2mm channels
Tue 11/06
FXD, RA, AD, MC, SL, NB at the telescope
Dilution fridge recycled yesterday (warm enough to turn He to gas, pump, cool down again). Base temperature stabilized around 216 mK naturally (with setting of 3He circulation, trying to mitigate strongly the fluctuations due to the small leak).
Laser alignment before lunch (+ tight screws of NIKA table leg & micrometric screws fixation on M5). Check pako scripts during the maintenance.
Obs plan: check resonance, pointing & focus, 1st skydip, 1st far field geometry, pointing session, implement pointing model, calibration sequences iterations.
First Skydip Reduction on scan 159. The ration between Tau2mm and Tau1mm is 0.64. The IRAM taumeter at 225GHz give a tau = 0.752
Figure-11/06-1: First Sky Dip reduction data (scan 159). Top: the Elevation of the telescope vs time. Bottom: the skydip reduction results.
Alessandro: please note that the 2mm array, compared to the one used in run 5, has a spectrum peaked at higher frequency (155GHz vs. 145GHz) in order to avoid as much as possible the Oxygen line at 110GHz. Is the ratio different compared to run 5 ?
Andrea: Yes it is. The ratio in run5 between the tau2mm and tau1mm was 0.75 so it means that the changes performed in the 2mm array band-pass (backshort and thickness of the film) go in the good direction.
Very nice result!!! NB has a table of tau(nu) = a(nu) + b(nu) * pwv which I had created from the ATM model. If the weighted mean center frequencies of the 2 and 1mm bands are known, we have the expected opacity ratio. (CK)
Andrea: you are absolutely right. I made it for run5 and the model was in very good agreement with the results from the skydips. I will do it for run6 with the new 2mm array band pass.
Wed 12/06
Quick summary of yesterday's observations
We didn't have the time to follow the complete plan, which goal was to do all the initial calibration procedure (get far field geometry, focus, pointing model, flux calibration) and test the various scan procedures, and data handling, trnasfer, and process scripts.
We spent some time on finding the frequencies (we have 128 valid pixel at 2mm [132 pixels total on the array] and 190 valid pixels at 1 mm [224 pixels total on the array]), and doing test on the tuning of the detectors.
- We did our 1st far field geometries (otf_geometry) to find the pixels map and choose one near the center of the 2mm to use as a reference (pixel 434).
- We tried to start to do some pointings, but the opacity was pretty bad all day long (~0.9 e.i. ~15 mmpwv), so that the cross scans gave very bad results. So we decided to change the plan and adapt it to the observing conditions.
We have tested the various scan scripts (pointing crosses and Lissajous, zigzag (otf) maps and Lissajous maps, skydips, we also tested the data handling, formatting, transfer (raw data & antenna FITS for the IDL pipeline, IMBFITS for mopsic), and processing (ILD scripts for quick looks).
We tried the radio alignment (moving the micrometric screws on the back of M5) => this was doable despite the pretty bad sky.
Pointing cross => optical axis far from the pixel we want to use as reference. => Use a pixel close to the optical axis for now.
- We tried standard focus and Lissajou focus,
- We corrected the Nasmyth offset in pako to get the optical axis close to the pixel 434 near the center of the 2mm array (pixel 28 on the 1mm array). We checked with pointing the result was as expected.
For more details check the 1st sheet of the Day to day observing log.
No observations on Monday 10 | Summary of Wed 12 observations

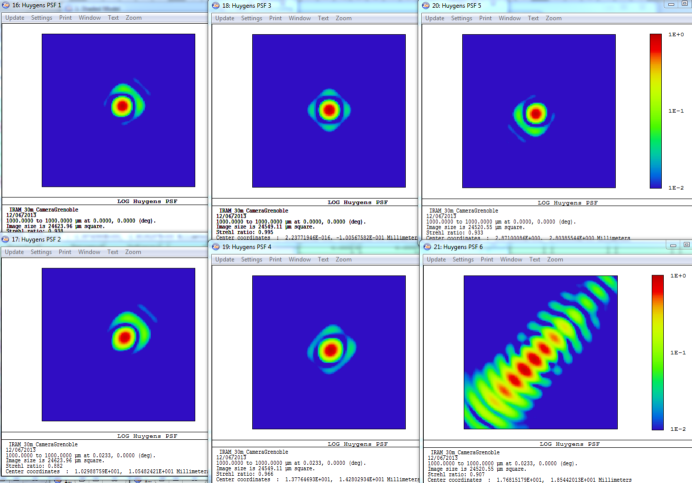

Simulation in Zemax of the effect of the focus on the PSF: left image = standard focus (Z axis), centre image = lateral focus X axis, right image = lateral focus Y axis ; top sub-images = central pixel, bottom sub-images = edge pixel at 2' FOV ; left sub-images = defocus by 1 mm, centre sub-images = perfectly focussed, right sub-images = defocus by -1 mm:
Goal for today: pointing, focus, geometry on Mars, check that with the Nasmyth offset we set yesterday the pointing at different elevation is still close to the central pixel, transfer this offset to the pointing model (NCS parameters) and set the offset in pako back to 0, check it is consistent, then do the pointing session.
Update at mid afternoon: tau is really too bad (~1); we tried crosses on 2 quasars but the results are extremely noisy, so we can't do the pointing session. Instead we try various focus and geometry on Mars, and try Lissajous pointings which will generate longer integration time of the pointing sources than the simple crosses, and check can see the sources with a reasonable accuracy.
Quick and dirty Mars map on scan 143.
Second Skydip performed on scan 178. In good agreement with 225GHz IRAM Taumeter (0.78)
Thu 13/06
Quick summary of yesterday's observations
Plan: continue with the initial calibration and characterization procedure (far field geometry, focus on axis and lateral, pointing model, skydip, flux calibration).
- Cross pointing, focus, geometry, flux calibration on Mars using the Nasmyth offset in pako to centre the optical axis on the reference pixel.
Implement the Nasmyth offset in the pointing model (NCS parameters) and set it to 0 in pako => from scan 119 we use this 2nd pointing model; check on several cross pointing scans on Mars and few bright sources that the crosses are indeed centred on the reference pixel.
- Atmospheric opacity pretty bad (~0.8), since difficult to do anything else take the time to accumulate cross statistics on Mars, focus, flux calibration, compare cross pointing with Lissajous pointing, do several otf geometry at different focus to characterize the shape of the best focus distribution on the arrays, do lateral focus.
Compare cross pointing with Lissajous pointing and Lissajous "faint" which is a bit longer => the 3 types of scans give consistent results, Lissajous give much better signal to noise scans to longer integration time => in these bad opacity conditions we can do a pointing session using Lissajous when the source is not bright enough.
- Do several skydips in a raw for Andrea 1st, then for Alain so that he can implement a better way to auto-tune the resonances between the steps of the tip.
- Do the pointing session, using mainly the Lissajous, checking with crosses some time to time on the brightest sources, a focus just before the session but could repeat another one later in the night because we were too tight to finish in time; estimations of HPBW gave a ~10% degradation.
Summary of Tue 11 observations | Summary of Thu 13 observations
Results of the pointing session: 1st plot = distribution of the sources in the sky; 4 following plots = Az & El corrections versus Az and El coordinates of the sources.
Today observations:
Juan Peñalver has calculated and implemented the new pointing model using the results of the pointing session (we had 5" rms with our 2nd pointing model, which could be reduced to 2" rms with the new one; it's clear from the plots that the main component was a residual on the Nasmyth offset, but JP changed also some other parameters linked to the bending of the floor). From today we will do all the following observation using this 3rd and final pointing model.
Fri 14/06
NIKA warmed-up. EMIR warm-up cancelled. This way we will have EMIR & HERA available over the weekend till Tuesday, for the case that NIKA fails. (CK, 14-Jun-2013)
NIKA warmed temporarily at 70K to recycle the C pump. At noon already cooling again and around 30K.
Plot of the temperature of the different stages of cryostat, after the quick warmup in the Friday 06/14 morning: white = 4K, red = still, green = mixing chamber
Brief hystory of the morning operations (UT time):
- 6h20: dilution stopped, mixture recovered:
- 6h37: spectro level before stopping PT 3.2e-7.
6h38: Pulse tube stopped
- 6h50: spectro start to increase, now 5e-6.
- 6h54: level 1e-5.
- 7h00: lev 1e-4. the warming speeds up
- 7h04: lev 1e-3. the mixture go back very quickly into the tank
- 7h06: lev 1 e-2. also the spectro level increase very quickly.. starting to pomp the mixture also from e15
- 7h12: lev 1.1e-1 (last time was 1.7e-1)
- 7h14: lev of spectro starting to decrease, now at 8e-2
7h19: PT switched back on, still at 40K, level spectro 4e-2
- 7h25: refill of nitrogen trap
- 7h28: lev 1e-2
- 7h36: 4K start to decrease, Tmax 76K.
- 7h44: lev 8e-4.
8h37: started fast circulation. at first with 300mbar in J2. spectro level 6e-7
- 9h10: closed ev18 which we forgot open and increased J2 to 500mbar
- 9h45: J2 to 700mbar
- 11h45: J2 to 300mbar
Quick summary of yesterday's observations
Plan: continue with calibration (check pointing, far field geometry, focus, flux calibration) and instrument characterization coping at best with turbulent quick opaque sky, get 1st extended and faint sources.
- Mars Pointing, focus, otfgeom. atmospheric condition turned really bad for observations: tau ~ 1, many clouds.
- Stare the sky at high elevation to accumulate data on empty noisy sky. Idea: try to characterize the noise; sky vs instrument to see if we can separate the components, and possibly get data allowing to study the atmosphere through millimetre data.
- Get statistics on pointing corrections with this turbulent sky (use Lissajous since crosses give not good enough signal). Focus, otfgeom.
- Observe the only secondary calibrator visible: IRC10216 (= CW Leo).
- 1 extended source: M82.
- 1 faint source: HLS091828
When we tried to point again the point source reference nearby we got huge beams => the focus changed tremendously, very quickly after sunset. After some while we figured out what happened: at 12:50 the NCS process that control the adjustment of the M2 focus depending on the temperature gradient stopped without anybody noticing it (no alarm from NCS); this had no effect until the evening since the outside temperature was stable, but after sunset we lost about ~10 degrees in ~2 hours.
Summary of Wed 12 observations | Summary of Sat 15 observations
Saturday 15/06
No observation yesterday (Friday)
NIKA is back at 200mK at 9 o'clock! No clouds in the blue sky BUT very strong wind.
Sunday 16/06
Quick summary of yesterday's observations
Plan: continue accumulate statistics on calibration and characterization, do 1st deep integration on an extended source and a faint point source.
- Initial pointing, focus, otfgeom on 3C84 and Mars .
- Accumulate some flux statistics on various secondary calibrators: CRL618, Alf ORI, IRC10216.
- Sky dip (statistics to check opacity calculation from frequency shift in line of sight consistent with sky dip and consistent with taumeter).
- 1st deep extended: RXJ1347-1145 (SZ cluster).
- Characterize side lobes on extremely bright source: Saturn (~ for far side lobes; near lobes not great due to turbulence, rings, moons).
- 1st deep faint mixed with extended: OPHB (a faint point source in a more bright and extended envelope).
- 1st deep point faint: MM18423.
Summary of Thu 13 observations | Summary of Sun 16 observations
Tonight (Sunday-Monday): only less than 7h of observations (summary tomorrow...), stopped since 22h00 UT, extremely strong winds all night long :-(.
Monday 17/06
Quick summary of yesterday's observations
Plan: After starting calibration (pointing, focus, otfgeom) do secondary calibrators, extended sources (M82 and M87), Skydip, continue with RXJ and rhoOph, finish the night with CygA and M33
- Initial pointing, focus, otfgeom on Mars .
- Accumulate some flux statistics on various secondary calibrators: CRL618, L1551IRS5, HL Tau, W3OH.
- Sky dip (statistics to check opacity calculation from frequency shift in line of sight consistent with sky dip and consistent with taumeter).
- M82, M87.
- faint HATLENS01, extended RX1347-1145.
- Stopped at 22h00 UT due to strong winds (8h of observations lost...).
Summary of Sat 15 observations | Summary of Mon 17 observations
The wind finally decreased in the early afternoon, so we resumed observations besides the clouds arrived quickly (however the tau stayed around 0.5 during the afternoon).
Tuesday 18/06
Quick summary of yesterday's observations
Plan: Usual calibrations, try to integrate on faint and extended sources
- Calibrations (focus, OTF, flux, etc.) on Mars at the beginning, secondary calibrators (distributed all along the session), Uranus at the end.
- First 10 hours: tau not good and fluctuations; last 10 hours: pretty good tau225 ~ 0.2-0.3 (at last).
- Faint and extended sources, in particular during the good tau.
- Calibrations during the good tau (mainly flux and pointing, but also some focus and a skydip).
Summary of Sun 16 observations |
Tuesday at 8:20 UT (10:20 local): end of the run 6. Dismount NIKA. Pack it up in the LPSC car and drive to bring the cryostat back to Grenoble for reparation of the leak(s) in the 3He-4He dilution circuit.
